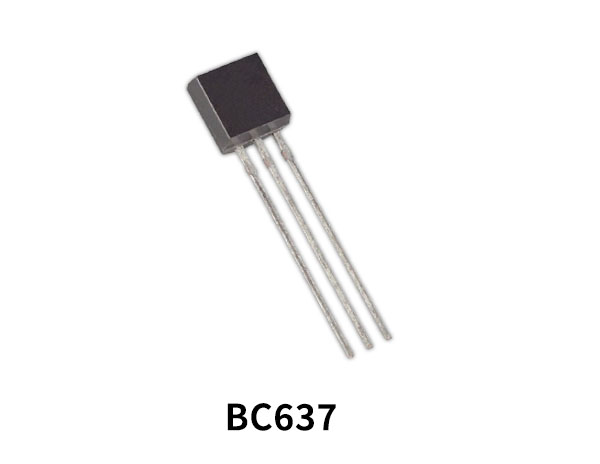

BC637 NPN High Current Transistor is designed for the Driver stages of audio/video amplifiers. NPN transistor in a TO-92; SOT54 plastic package.
PNP complement: BC636

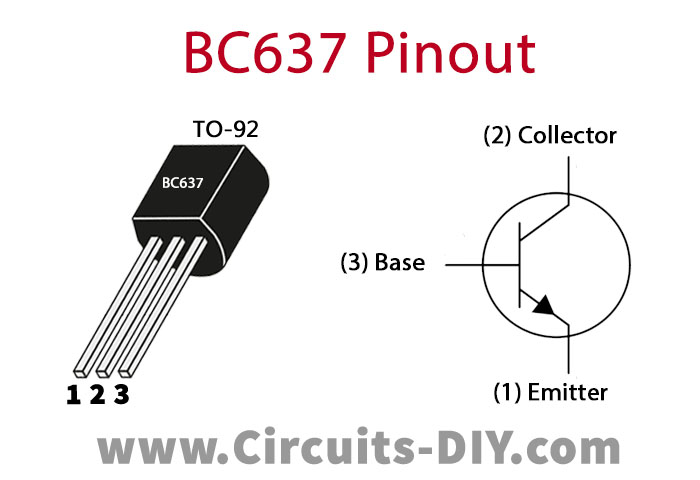

BC637 Pinout
BC637 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Collector |
| 3 | Base |
BC637 Key Features
- High current (max. 1 A)
- Low voltage (max. 80 V).
Specification
| Type Designator | BC637 |
| Maximum Collector Power Dissipation (Pc) | 1 W |
| Maximum Collector-Base Voltage |Vcb| | 60 V |
| Maximum Collector-Emitter Voltage |Vce| | 60 V |
| Maximum Emitter-Base Voltage |Veb| | 5 V |
| Maximum Collector Current |Ic max|: | 0.1 A |
Application
- Driver stages of audio/video amplifiers.
You can download this datasheet for BC637 NPN High Current Transistor – Datasheet from the link given below:
