BC238 NPN Small Signal Transistor – Datasheet

5,809 views

BC238 NPN General Purpose Transistor is designed for low noise amplifier application. BC238 is Complementary With PNP type BC309.

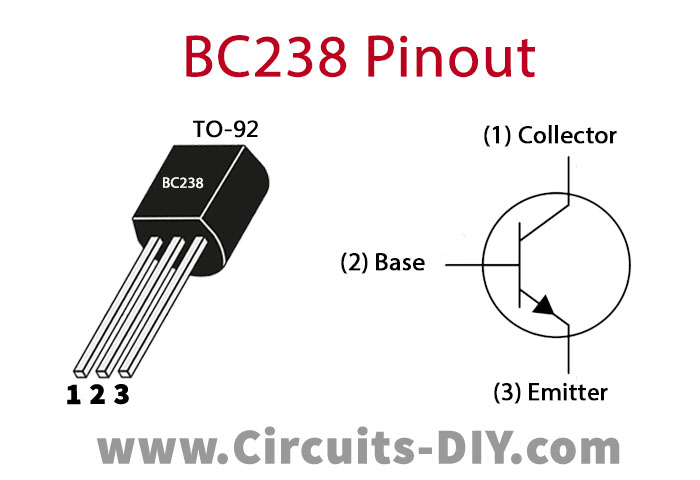

BC238 Pinout

BC238 Pin Configuration

Pin NoPin Name
1Collector
2Base
3Emitter

BC238 Key Features

  • High Voltage: BC238 VCEO=45V
  • Low Noise : BC239 NF=0.2dB(Typ.), 3dB(Max.)
    • (VCE=6V, IC=0.1mA, f=1kHz)

Application

  • Low Noise amplifier application

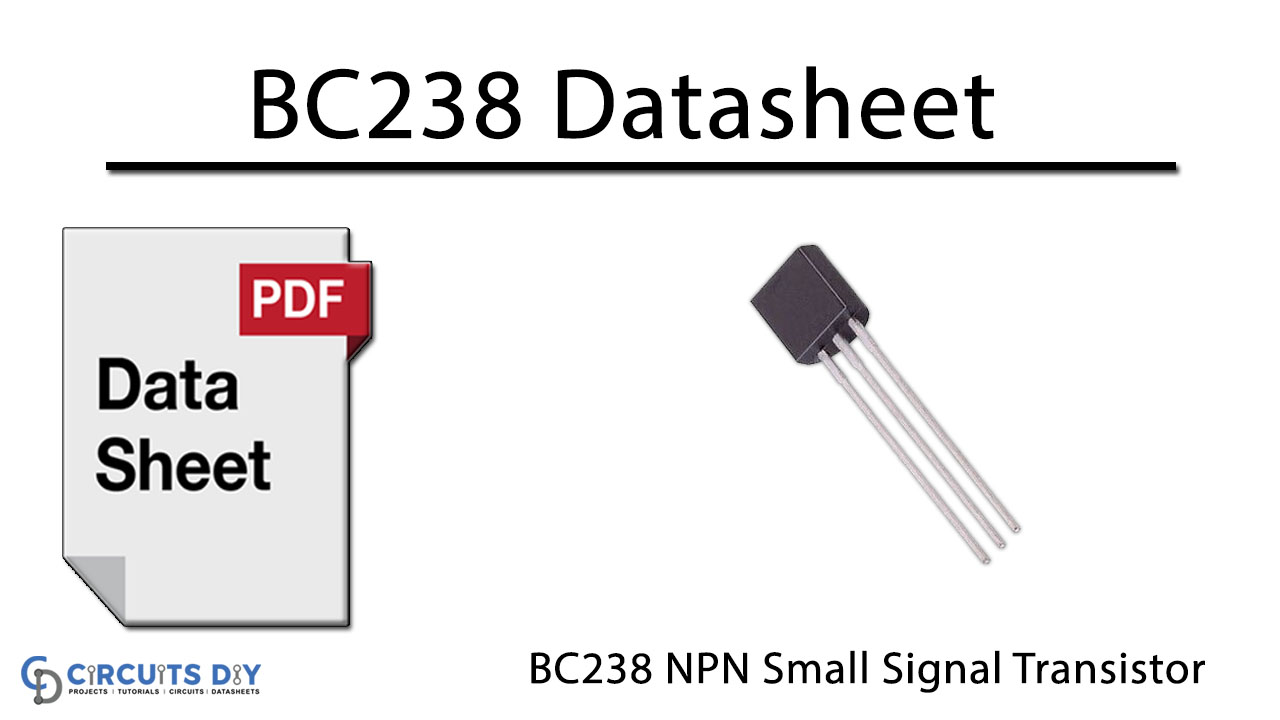

You can download this datasheet for BC238 NPN Small Signal Transistor – Datasheet from the link given below:
