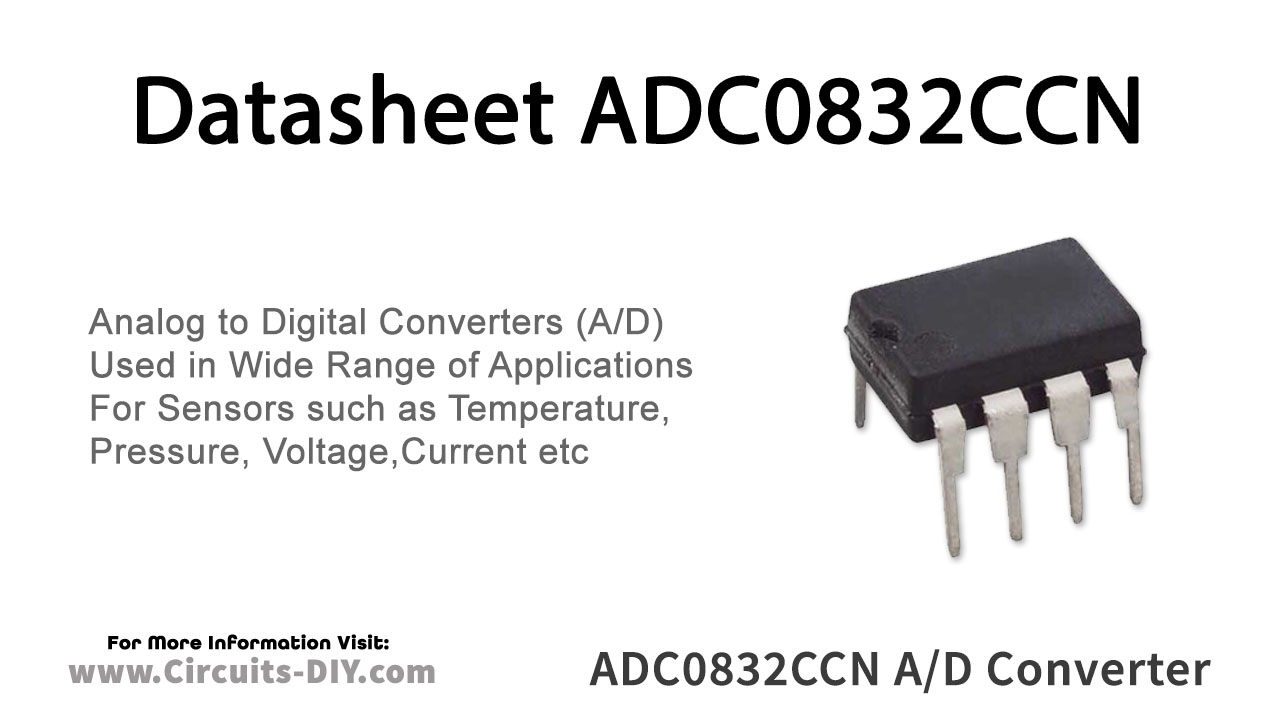

ADC0832CCN 8-bit A/D Converter with MUX (2ch) – Datasheet

2,467 views

The ADC0832CCN series are 8-bit successive approximation A/D converters with a serial I/O and configurable input multiplexers with up to 8 channels. The serial I/O is configured to comply with the NSC MICROWIRE serial data exchange standard for easy interface to the COPS™ family of processors, and can interface with standard shift registers or μPs. The 2-, 4- or 8-channel multiplexers are software configured for single-ended or differential inputs as well as channel assignment.

ADC0832CCN Pinout

ADC0832CCN Pin Configuration

Pin NumberPin NameDescription
1CS’ Chip Select (Active Low)
2CH 0 Analog Input Channel 0
3CH 1Analog Input Channel 1
4GND Ground
5D1Data Input
6DO Data Output
7CLK Clock
8Vcc Positive Supply

ADC0832CCN Features

  • Operates ratiometrically or with 5 VDC voltage reference
  • No zero or full-scale adjust required
  • 2-, 4- or 8-channel multiplexer options with address logic
  • Shunt regulator allows operation with high voltage supplies
  • 0V to 5V input range with single 5V power supply
  • Remote operation with serial digital data link
  • TTL/MOS input/output compatible
  • 0.3″ standard width, 8-, 14- or 20-pin DIP package
  • 20 Pin Molded Chip Carrier Package (ADC0838 only)
  • Surface-Mount Package

ADC0832CCN Specifications

  • Resolution 8 Bits
  • Total Unadjusted Error ±1⁄2 LSB and ±1 LSB
  • Single Supply 5 VDC
  • Low Power 15 mW
  • Conversion Time 32 μs

Application

  • Low-Cost Remote Temperature Sensor
  • Digitizing a Current Flow

You can download this datasheet for ADC0832CCN 8-bit A/D Converter with MUX (2ch) from the link given below:
