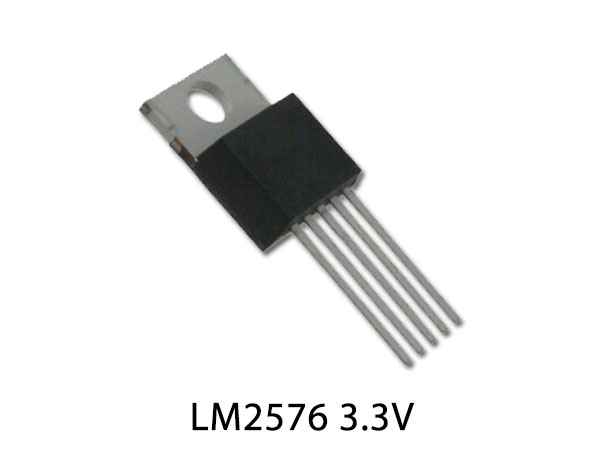

The LM2576-ADJ is a monolithic integrated circuit that provides all the active functions for a step-down (buck) switching regulator. This device features an output voltage that is adjustable from 3.3V to 37V and is capable of driving a 3A load with excellent line and load regulation. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation and a fixed-frequency oscillator.

The LM2576 offers a high-efficiency replacement for the popular three-terminal adjustable linear regulator. It substantially reduces the size of the heat sink, and in many cases, no heat sink is required.

LM2576 Pinout

LM2576 Pin Configuration

Pin NoPin NameDescription
1ON/OFFOn/Off Pin
2FEEDBACKFeedback Pin
3GNDGround Pin
4OUTOutput Pin
5VinInput Voltage Pin

LM2576 Key Features

  • Guaranteed 3A output current
  • Wide input voltage range, 4V to 40V
  • Wide output voltage range, 1.23V to 37V
  • Requires only 6 external components
  • 52 kHz fixed frequency internal oscillator
  • Low power standby mode, la typically <200 A
  • Efficiency typically over 80%
  • Uses readily available standard inductors

Application

  • Simple high-efficiency step-down (buck) regulator
  • Efficient pre-regulator for linear regulators On-card switching regulators
  • Positive to negative converter (Inverting Buck-Boost)
  • Isolated Fly back Converter using minimum number of external components

You can download this datasheet for LM2576 3.3V 3A Step-Down Voltage Regulator – Datasheet from the link given below:
