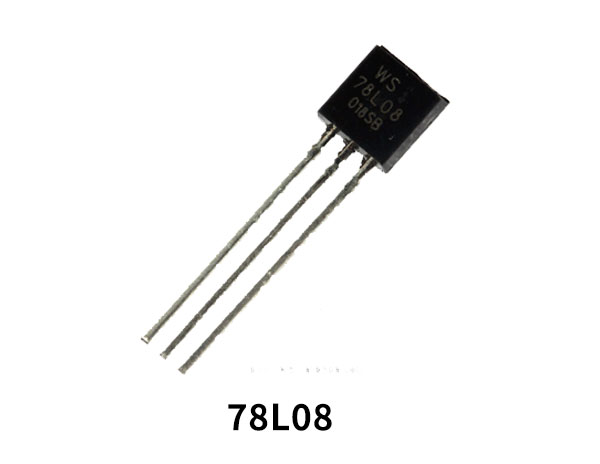

78L08 +8V Positive Regulator (100mA) – Datasheet

7,560 views

The LM78L08 is a three-terminal positive regulator is available with several fixed output voltages making them useful in a wide range of applications. When used as a Zener diode/resistor combination replacement, the LM78L08 usually results in an effective output impedance improvement of two orders of magnitude, and lower quiescent current.

This regulator can provide local on-card regulation, eliminating the distribution problems associated with single-point regulation. The voltages available allow the LM78L08 to be used in logic systems, instrumentation, HiFi, and other solid-state electronic equipment.

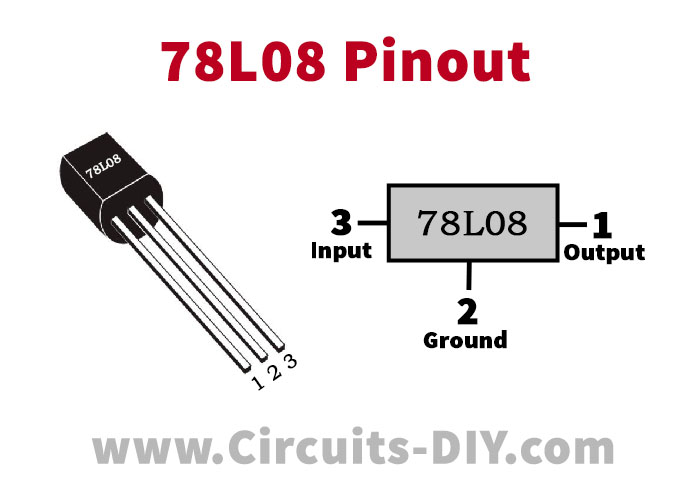

78L08 Pinout

78L08 Pin Configuration

Pin NoPin Name
1Output
2Ground
3Input

78L08 Key Features

  • LM78L05 in micro SMD package
  • Output voltage tolerances of ±5% over the temperature range
  • The output current of 100 mA
  • Internal thermal overload protection
  • Output transistor safe area protection
  • Internal short circuit current limit
  • Available in plastic TO-92 and plastic SO-8 low profile packages
  • No external components
  • Output voltages of 5.0V, 6.2V, 8.2V, 9.0V, 12V, 15V

Application

  • Fixed output voltages
  • Logic systems
  • Instrumentation

You can download this datasheet for 78L08 +8V Positive Regulator (100mA) – Datasheet from the link given below:
