7805 +5V 1A Positive Regulator – Datasheet

6,486 views

The LM7805 is a monolithic 3-terminal positive voltage regulator that employs internal current-limiting, thermal shutdown, and safe-area compensation, making them essentially indestructible. LM7805 is intended as a fixed voltage regulator in a wide range of applications including local (on-card) regulation for the elimination of noise and distribution problems associated with single-point regulation.

In addition, to use as fixed voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents. Considerable effort was expended to make the entire series of regulators easy to use and minimize the number of external components. It is not necessary to bypass output, although this does improve transient response.

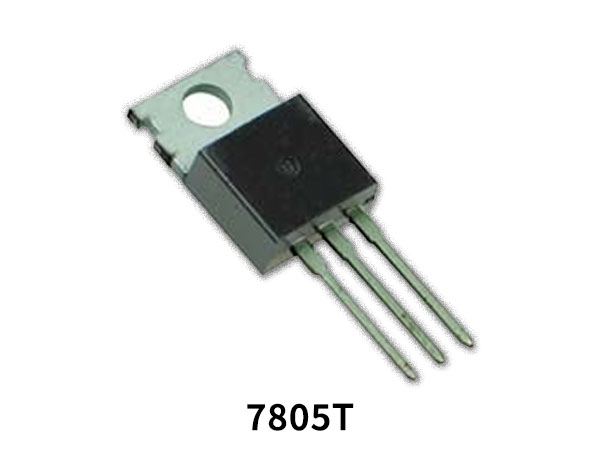

7805 Pinout

LM7805 Pin Configuration

Pin NoPin Name
1Input
2Ground
3Output

7805 Key Features

  • Complete specifications at 1A load
  • Output voltage tolerances of ±2% at Tj = 25˚C and ±4% over the temperature range (LM340A)
  • Line regulation of 0.01% of VOUT/V of ∆VIN at 1A load (LM340A)
  • Load regulation of 0.3% of VOUT/A (LM340A)
  • Internal thermal overload protection
  • Internal short-circuit current limit
  • Output transistor safe area protection
  • P+ Product Enhancement tested

Application

  • Local (on-card) Regulation

You can download this datasheet for 7805 +5V 1A Positive Regulator – Datasheet from the link given below:
