74LS74 D-Type Positive Edge Triggered Flip-Flop IC – Datasheet

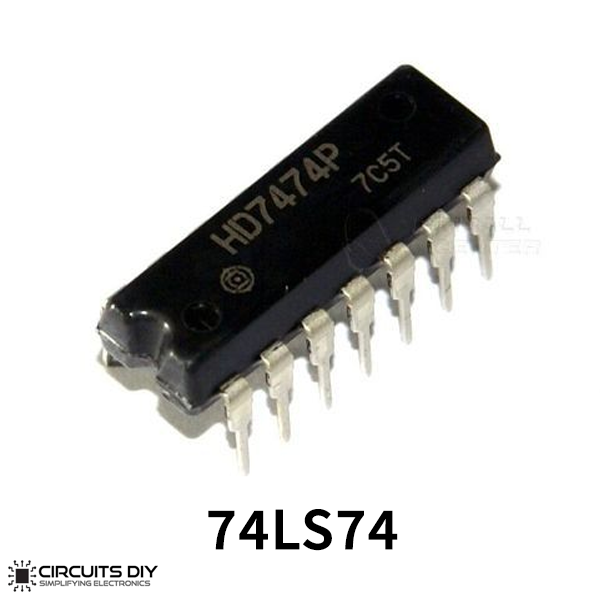

74LS74 IC is a member of the 74XXYY IC series. The 74LS70 IC has a wide range of working voltage, a wide range of working conditions, and directly interfaces with CMOS, NMOS, and TTL. The output of the IC always comes in TTL which makes it easy to work with other TTL devices and microcontrollers. 74LS74 flip-flop IC utilizes the Schottky TTL circuitry to produce high-speed D-type flip-flops. Each flip-flop has individual clear and set inputs, and also complementary Q and Q`(bar) outputs.

What is a D-Type Flip-Flop?

A D-type flip-flop is a clocked flip-flop which has two stable states. A D-type flip-flop operates with a delay in input by one clock cycle. Thus, by cascading many D-type flip-flops delay circuits can be created, which are used in many applications such as in digital television systems. A D-type flip-flop is also known as a D flip-flop or delay flip-flop.

74LS74 Pinout

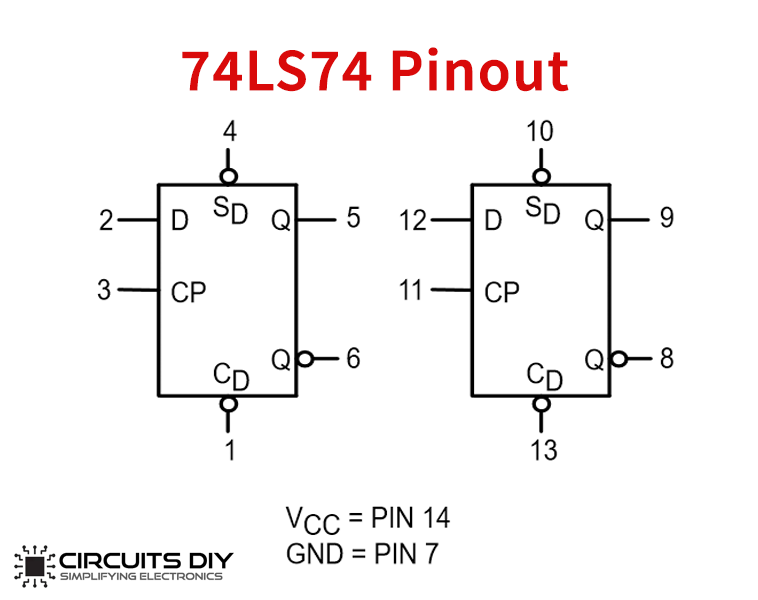

74LS74 Pin Configuration

Pin No	Pin Name	Description
1	1CLR’	Resets the flip flop by clearing its memory
2	1D	Input pin of the Flip Flop
3	CLK1	Clock pin for 1st flip-flop
4	1SET’	Input SET pin for flip-flop
5	1Q	Output Pin of the Flip Flop
6	1Q’	The inverted output pin of Flip Flop
7	GND	Ground
8	2Q’	The inverted output pin of Flip Flop
9	2Q	Output Pin of the Flip Flop
10	2SET’	Input SET pin for flip-flop
11	2CLK	Clock pin for 2nd flip-flop
12	2D	Input pin of the Flip Flop
13	2CLR’	Resets the flip flop by clearing its memory
14	VCC	Supply Voltage

74LS74 Features & Specifications

• Operating Voltage: 2V to 15V
• Propagation Delay: 40nS
• Minimum High-Level Input Voltage: 2V
• Maximum Low-Level Input Voltage: 0.8V
• Operating Temperature: 0 to 70°C
• High-Level Output Current: 8mA
• Available in 14-pin SO-14, SOT42 packages
• Input type: Bipolar
• Output type: Push-Pull

Application

• PCs and notebooks
• Digital Electronics
• Network equipment
• Televisions

You can download this Datasheet for 74LS74 D-Type Positive Edge Triggered Flip-Flop from the link given below:

See Also: 74LS45 BCD to Decimal Decoders/Drivers IC | 74LS30 – 8 Input NAND Logic Gate IC | S8050 NPN Transistor
