Introduction
A 7-watt to 10-watt amplifier circuit is a compact and powerful audio amplification solution that can bring your audio experiences to the next level. This small but mighty amplifier circuit is designed to turn your audio signals into a powerful sound output that will fill any room with vibrant sound.
Whether you are a seasoned electronics enthusiast or a beginner, building a 7-watt to 10-watt amplifier circuit is a fun and educational project that can unleash your creativity and bring your audio ideas to life. With its versatility and performance, a 7-watt to 10-watt Amplifier Circuit using IC LM383 is the perfect solution for anyone looking to amplify their audio experiences.
Hardware Required
You will require the following hardware for a 7-watt To 10-watt Amplifier Circuit Circuit.
| Components | Value | Qty |
|---|---|---|
| IC | LM383 | 1 |
| Polar Capacitor | 10, 470, 1000 | 1, 1, 2 |
| Resistor | 220, 2.2, 16, 10k | 1, 1, 1, 1 |
| Battery | +12V | 1 |
| Speaker | 40hm | 1 |
| Switch | – | 2 |
Circuit Diagram
Working Explanation

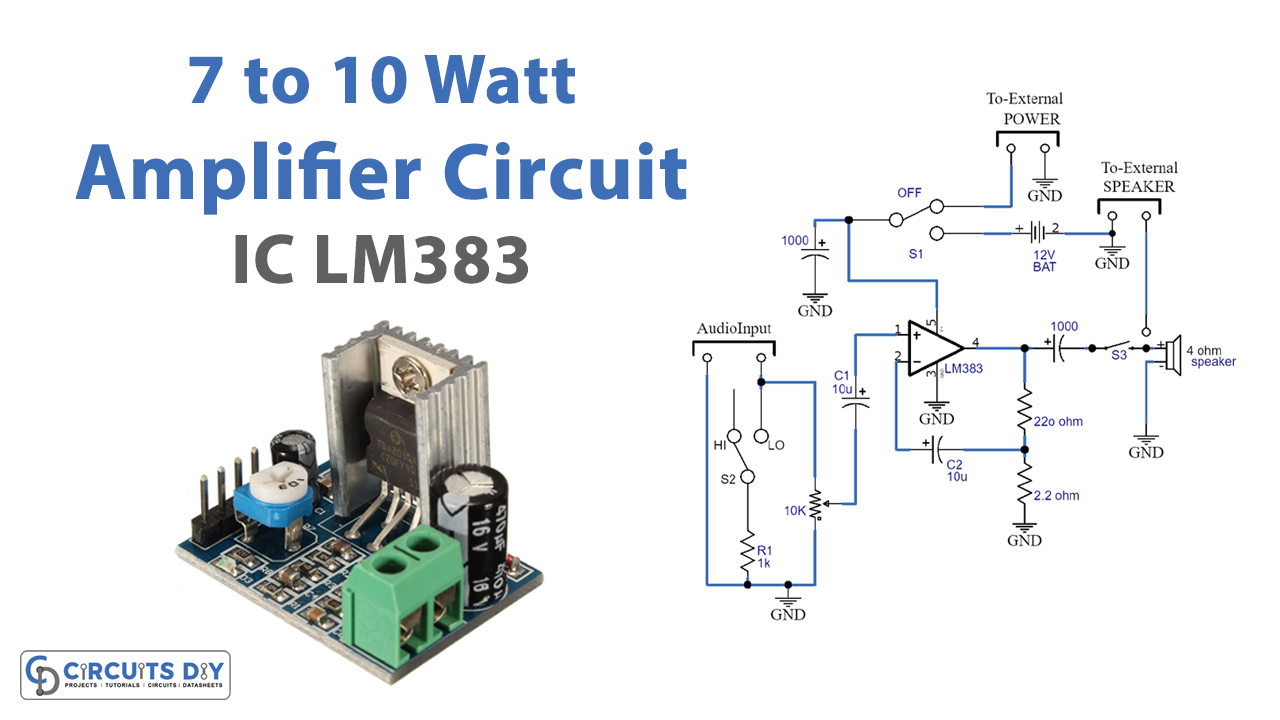

This circuit diagram shows a 7-watt audio amplifier using the LM383 IC. The LM383 is a low-power audio amplifier designed for low-impedance loads such as a 4-ohm speaker. It has low distortion and can operate from a supply voltage of 5 to 20V. The circuit is simple and can be easily constructed on a PCB board.
The audio signal is applied to the non-inverting input of the amplifier IC. The input impedance can be switched between 16 ohms and 10k ohms using switch S2. The amplified audio signal is available at the output of the IC and is fed to the speaker through C3. The volume level of the output can be adjusted using the volume control (R4).
Final Words
Building a 7-watt to 10-watt amplifier circuit requires some knowledge of electronics, but with the right components and tools, it can be a straightforward process. So, try building this circuit, ask any questions, and share your circuit in the comment section.
