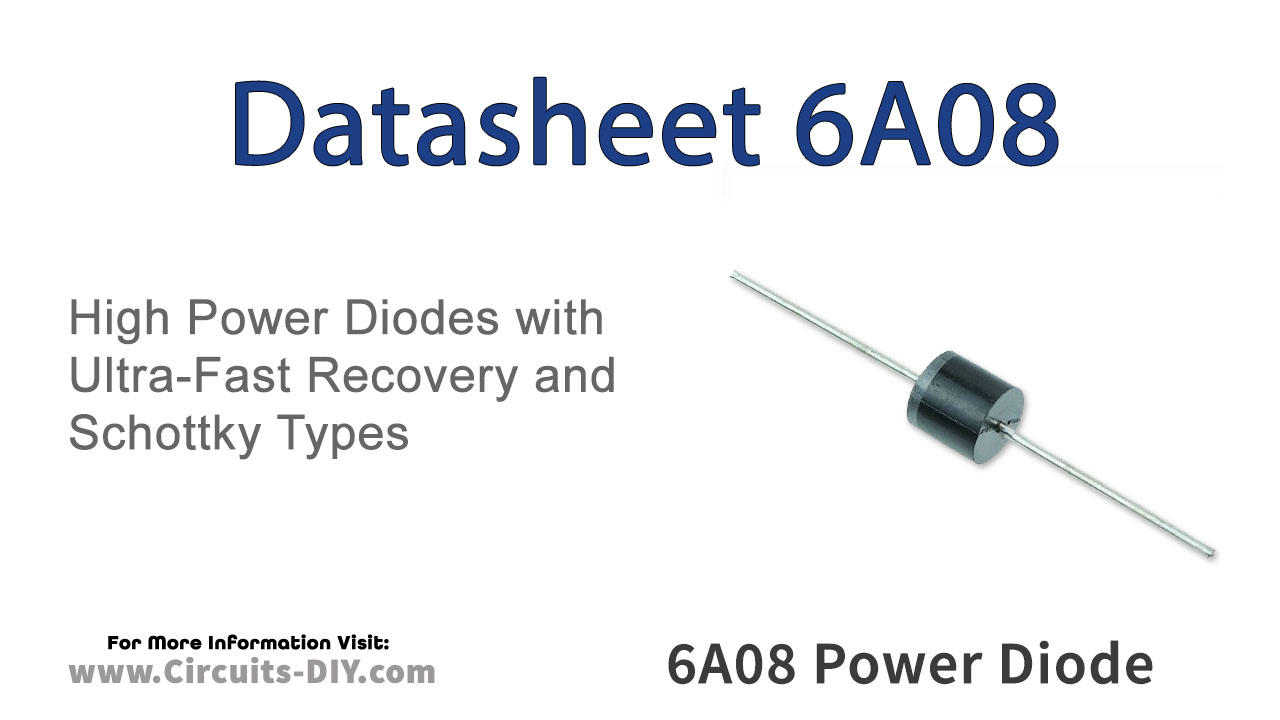

6A08 is a 800 Volt 6 Ampere Power Diode provides uncontrolled rectification of power and are used in applications such as battery charging and DC power supplies as well as AC rectifiers and inverters. Due to their high current and voltage characteristics they can also be used as free-wheeling diodes and snubber networks.
6A08 Pinout
6A08 Features
- Low cost
- Low leakage
- Low forward voltage drop
- High current capability
- High surge current capability
6A08 Specification
| Diode Type | Rectifier Diode |
| Application | General Purpose |
| Diode Element Material | Silicon |
| Forward Voltage-Max (VF) | 1.0 V |
| Non-rep Pk Forward Current-Max | 300.0 A |
| Operating Temperature-Max | 150.0 Cel |
| Operating Temperature-Min | -55.0 Cel |
| Output Current-Max | 6.0 A |
| Rep Pk Reverse Voltage-Max | 800 V |
| Reverse Current-Max | 10.0 µA |
You can download this datasheet for 6A08 800V 6A Power Diode from the link given below:
