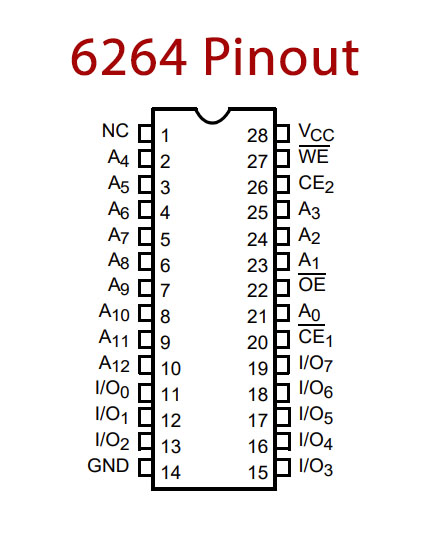

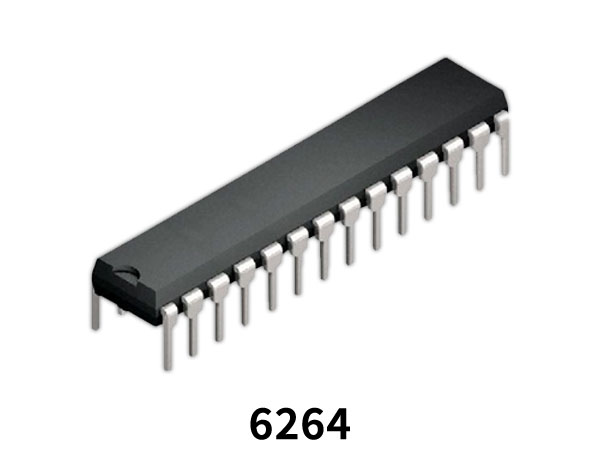

6264 Pinout
6264 Pin Configuration
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | NC | No Connection |
| 2 | A4 | Address Pin 4 |
| 3 | A5 | Address Pin 5 |
| 4 | A6 | Address Pin 6 |
| 5 | A7 | Address Pin 7 |
| 6 | A8 | Address Pin 8 |
| 7 | A9 | Address Pin 9 |
| 8 | A10 | Address Pin 10 |
| 9 | A11 | Address Pin 11 |
| 10 | A12 | Address Pin 12 |
| 11 | I/O 0 | Data Inputs/Outputs 0 |
| 12 | I/O 1 | Data Inputs/Outputs 1 |
| 13 | I/O 2 | Data Inputs/Outputs 2 |
| 14 | GND | Ground Pin |
| 15 | I/O 3 | Data Inputs/Outputs 3 |
| 16 | I/O 4 | Data Inputs/Outputs 4 |
| 17 | I/O 5 | Data Inputs/Outputs 5 |
| 18 | I/O 6 | Data Inputs/Outputs 6 |
| 19 | I/O 7 | Data Inputs/Outputs 7 |
| 20 | CE’ | Chip Enable Pin 1 |
| 21 | A0 | Address Pin 0 |
| 22 | OE’ | Output Enable Pin |
| 23 | A1 | Address Pin 1 |
| 24 | A2 | Address Pin 2 |
| 25 | A3 | Address Pin 3 |
| 26 | CE’ | Chip Enable Pin 2 |
| 27 | WE’ | Write Enable Pin |
| 28 | VCC | Power Supply Pin |
6264 Key Feature
- Equal Access and Cycle Time
- Common Data Input and Output, Three State Output
- Directly TTL Compatible: All Input and Output
- Standard 28pin Package Configuration
- Pin Out Compatible with 64K EPROM HN482764
- Capability of Battery Back Up Operation (L-/LL-version)
You can download this datasheet for 6264 8Kx8 120ns CMOS RAM – Datasheet from the link given below:
