2SK117 N-Channel JFET – Datasheet

7,227 views

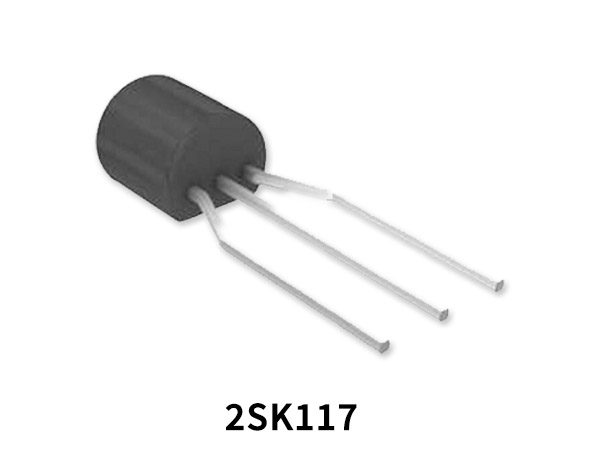

2SK117 N-Channel JFET is designed for low noise audio amplifier applications, high breakdown voltage and high input impedance.

2SK117 Pinout

2SK117 Pin Configuration

Pin NoPin Name
1Drain
2Source
3Gate

2SK117 Key Features

  • Type Designator: 2SK117
  • Type of Transistor: JFET
  • Type of Control Channel: N -Channel
  • Package: TO-92

2SK117 Specification

Id(A)P d(W)V ds(V)T j(C)R ds(ohm)
0.0140.350125250

2SK117 Equivalent/Alternate

  • 2SK0601, 2SK0615, 2SK066400L, 2SK0664G0L, 2SK066500L, 2SK0665G0L, 2SK1000, 2SK1001, 2SK1004, 2SK1005

Applications

  • Low Noise Audio Amplifier Applications

You can download this datasheet for 2SK117 N-Channel JFET from the link given below:
