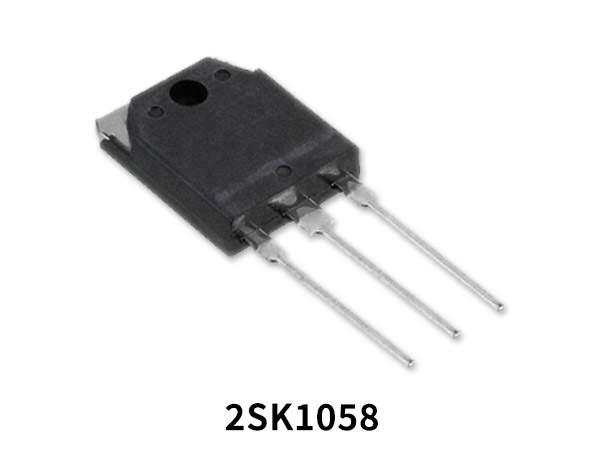

2SK1058 N-Channel Power MOSFET is designed for low frequency power amplifier, complementary pair with 2SJ160, 2SJ161 and 2SJ162 and suitable for audio power amplifier.
2SK1058 Pinout
2SK1058 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Gate |
| 2 | Drain |
| 3 | Source |
2SK1058 Key Features
- Type Designator: 2SK1058
- Type of Transistor: MOSFET
- Type of Control Channel: N -Channel
- Package: T03P
- Good frequency characteristic
- High speed switching
- Wide area of safe operation
2SK1058 Specification
| 7 | 100 | 160 | 150 | 18 | 0.15 | 1.4 | 1.4 | 350 |
2SK1058 Equivalent/Alternate
- 2SK0601, 2SK0615, 2SK066400L, 2SK0664G0L, 2SK066500L, 2SK0665G0L, 2SK1000, 2SK1001, 2SK1004, 2SK1005
Applications
- Low frequency power amplifier
- Complementary pair with 2SJ160, 2SJ161 and 2SJ162
You can download this datasheet for 2SK1058 N-Channel Power MOSFET from the link given below:
