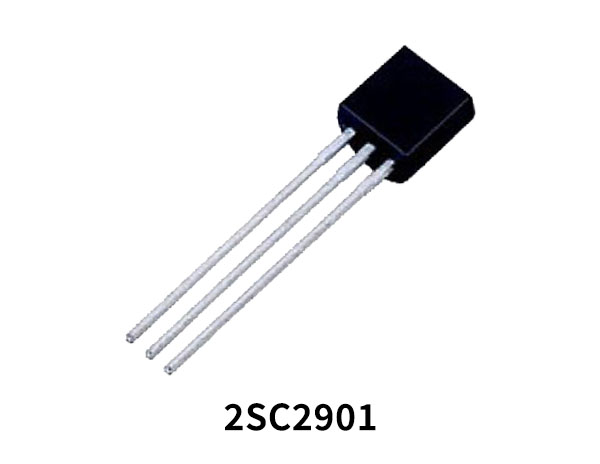

2SC2901 NPN General Purpose Transistor – Datasheet

1,795 views

The 2SC2901 NPN General Purpose Transistor is designed for general-purpose amplifier and high-speed switching applications

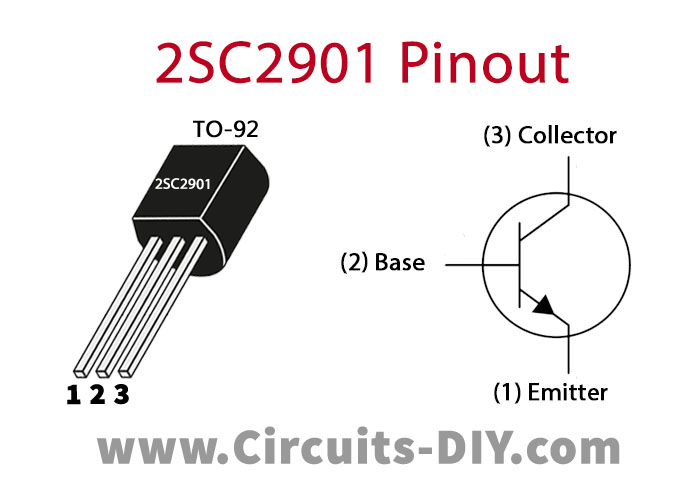

2SC2901 Pinout

2SC2901 Pin Configuration

Pin NoPin Name
1Emitter
2Base
3Collector

2SC2901 Key Features

  • High Frequency Current Gain.
  • High Speed Switching
  • Smal Output Capacitance

2SC2901 Specification

NameDescription
Collector-Base Voltage (Vcb) 40 V
Emitter-Base Voltage (Veb) 5 V
Collector Current (Ic)  0.2 A
Collector Power Dissipation (Pc) 0.6 W
Transition Frequency 375 MHz

Application

  • General-Purpose Amplifier
  • High-speed switching applications

You can download this datasheet for 2SC2901 NPN General Purpose Transistor – Datasheet from the link given below:
