2SC2001 NPN General Purpose Transistor – Datasheet

4,817 views

The 2SC2001 NPN General Purpose Transistor is designed for use in the output stage of portable RADIO and cassette type tape recorders, general-purpose applications

2SC2001-NPN-General-Purpose-Transistor-2

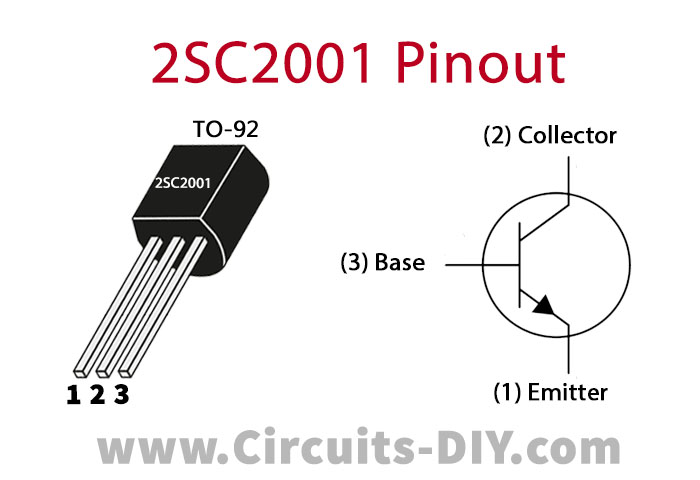

2SC2001 Pinout

2SC2001 Pin Configuration

Pin NoPin Name
1Emitter
2Collector
3Base

2SC2001 Key Features

  • High total power dissipation.
    • PT :600 mW
  • High hFE and low VcEsat)
    • hFE c 100 mA) 200 TYP
    • VcElsat) 1700 mA 0.20TYP

2SC2001 Specification

NameDescription
Collector-Emitter Voltage (Vce)25 V
Collector-Base Voltage (Vcb) 30 V
Emitter-Base Voltage (Veb) 5 V
Collector Current (Ic)  0.7 A
Collector Power Dissipation (Pc) 0.7 W
Transition Frequency 85 MHz

Application

  • Portable RADIO
  • Cassette type tape recorders
  • General-purpose applications

You can download this datasheet for 2SC2001 NPN General Purpose Transistor – Datasheet from the link given below:
