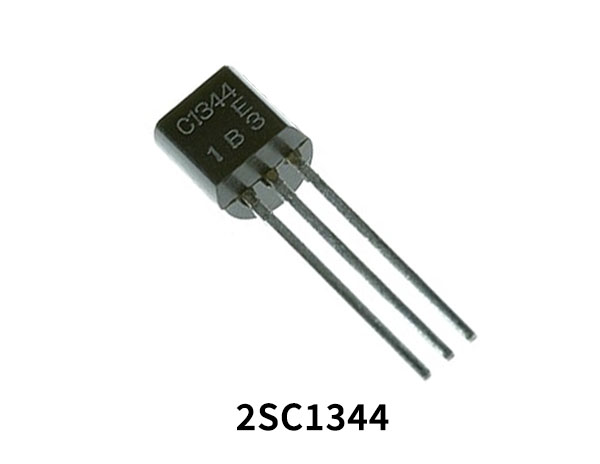

2SC1344 NPN Amplifier is designed for Low-frequency low noise amplifier applications.
2SC1344 Pinout
2SC1344 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Collector |
| 3 | Base |
2SC1344 Specification
| Name | Description |
|---|---|
| Collector-Emitter Voltage (Vce) | 30 V |
| Collector-Base Voltage (Vcb) | 30 V |
| Emitter-Base Voltage (Veb) | 5 V |
| Collector Current (Ic) | 0.1 A |
| Collector Power Dissipation (Pc) | 0.2 W |
| Transition Frequency | 100 MHz |
Application
- Low frequency low noise amplifier
You can download this datasheet for 2SC1344 NPN Amplifier – Datasheet from the link given below:
