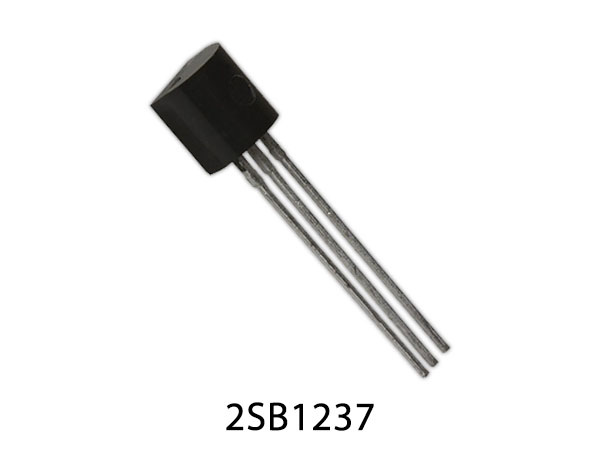

2SB1237 PNP General Purpose Transistor is designed for the Low saturation voltage. 2SB1237 complementary to 2SD1664.
2SB1237 Pinout
2SB1237 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Collector |
| 3 | Base |
2SB1237 Key Features
- Low VCE(sat).
- VCE(sat) = 0.2V (Typ.)
- (IC / IB = –500mA / –50mA)
- Compliments 2SD1664 / 2SD1858.
2SB1237 Specification
| Name | Description |
|---|---|
| Collector-Emitter Voltage (Vce) | 160 V |
| Collector-Base Voltage (Vcb) | 160 V |
| Emitter-Base Voltage (Veb) | 6 V |
| Collector Current (Ic) | 2 A |
| Collector Power Dissipation (Pc) | 0.9 W |
| Transition Frequency | 15 MHz |
You can download this datasheet for 2SB1237 PNP General Purpose Transistor – Datasheet from the link given below:
