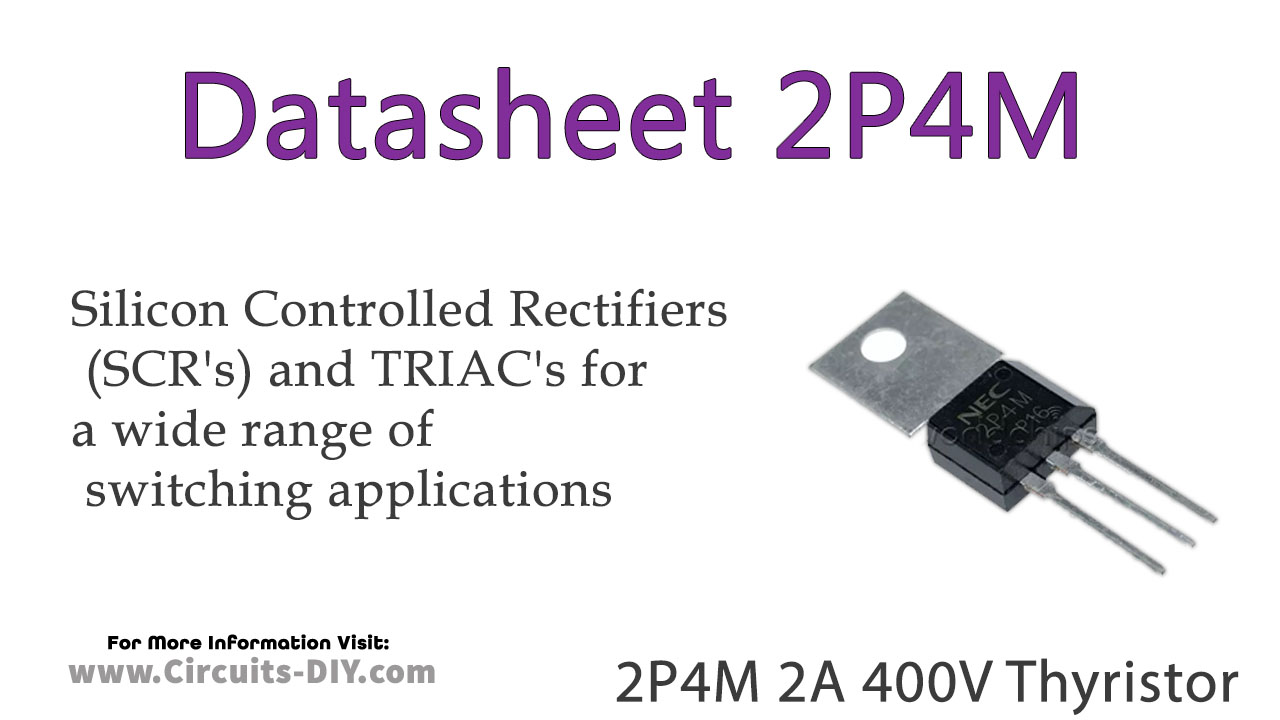

The 2P4M 2A Thyristor is P-gate all diffused plastic molded type SCR granted average on-state current 2 Amps (Tc = 77 C), with rated voltages up to 600 volts.

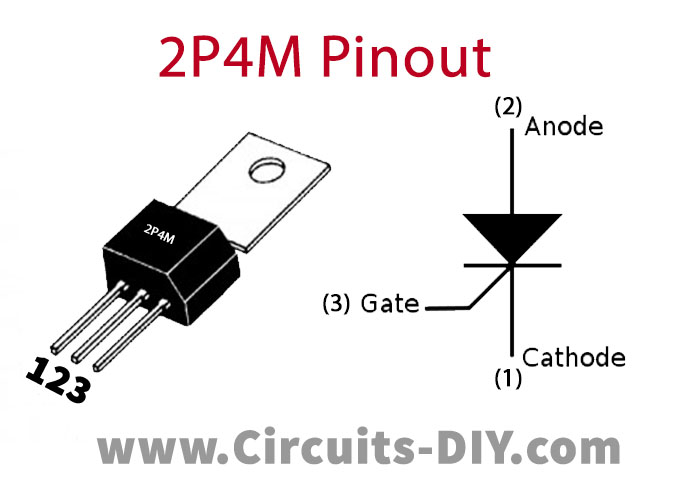

2P4M Pinout
2P4M Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Cathode |
| 2 | Anode |
| 3 | Gate |
2P4M Key Features
- Easy installation by its miniature size and thin electrode leads
- Less holding current distribution provides free application design.
- Low cost because of mass-production.
2P4M Specification
| Type | Vdsm (V) | Vrsm (V) | It (A) | Igt (uA) | Vgt (V) |
|---|---|---|---|---|---|
| 2P4M | 500 | 500.0 | 2.0 | 200.0 | 0.8 |
Application
- Temperature control
- Electric sewing machine
- Speed control of miniature type motor
- Light display equipment
- Lamp dimmer such as a display for entertainment.
- Automatic gas lighter
- Battery charger
- Solid state static switches
You can download this datasheet for 2P4M 2A 400V Thyristor – Datasheet from the link given below:
