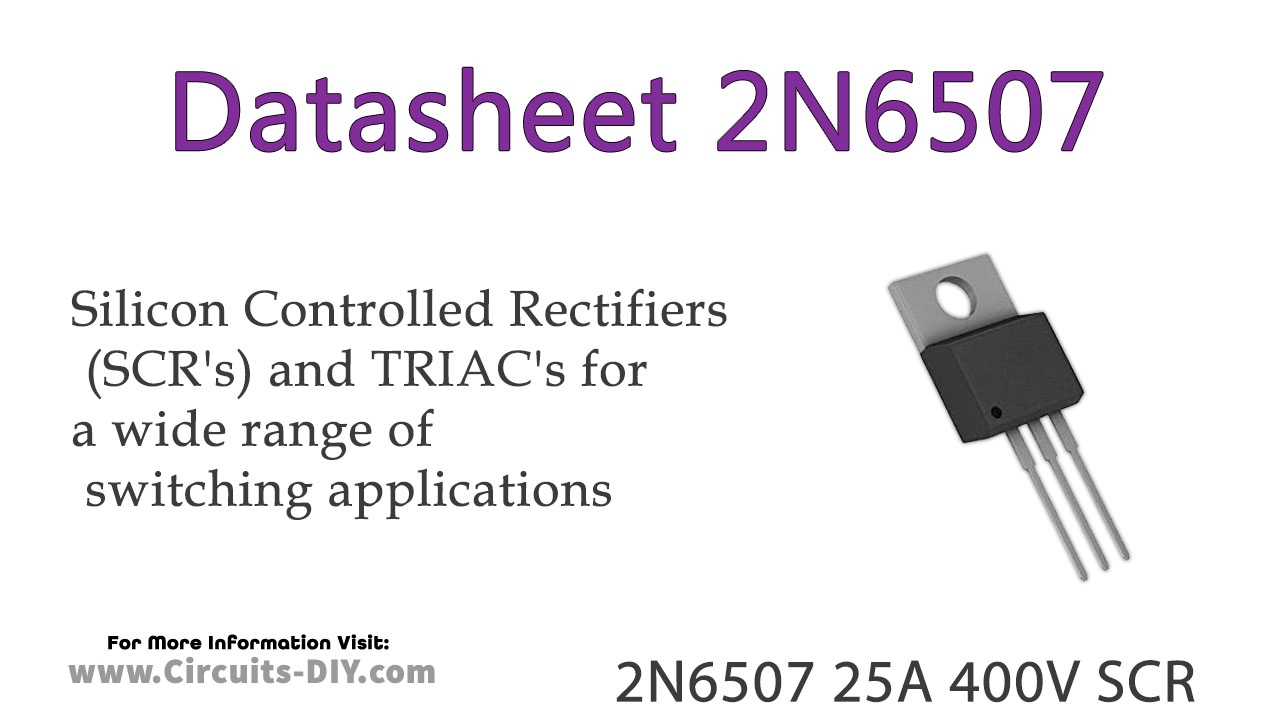

2N6507 SCR is the primary design for half-wave ac control applications such as motor controls, heating controls, and power supply crowbar circuits.
2N6507 Pinout
2N6507 Pin Configuration
Pin No | Pin Name |
---|---|
1 | Cathode |
2 | Anode |
3 | Gate |
2N6507 Key Features
- Glass Passivated Junctions with Center Gate Fire for Greater Parameter Uniformity and Stability
- Small, Rugged, Thermowatt Constructed for Low Thermal Resistance, High Heat Dissipation and Durability
- Blocking Voltage to 800 Volts
- 300 A Surge Current Capability
- Device Marking: Logo, Device Type, e.g., 2N6504, Date Code
2N6507 Specification
Type | Vgt (V) | Vdrm (V) | It(A) | Igt (uA) |
---|---|---|---|---|
2N6507 | 25 | 400 | 25 | 400 |
Application
- It is used for a wide range of switching applications
- Motor controls
- Heating controls
- Power supply crowbar circuits
You can download this datasheet for 2N6507 25A 400V SCR – Datasheet from the link given below:
