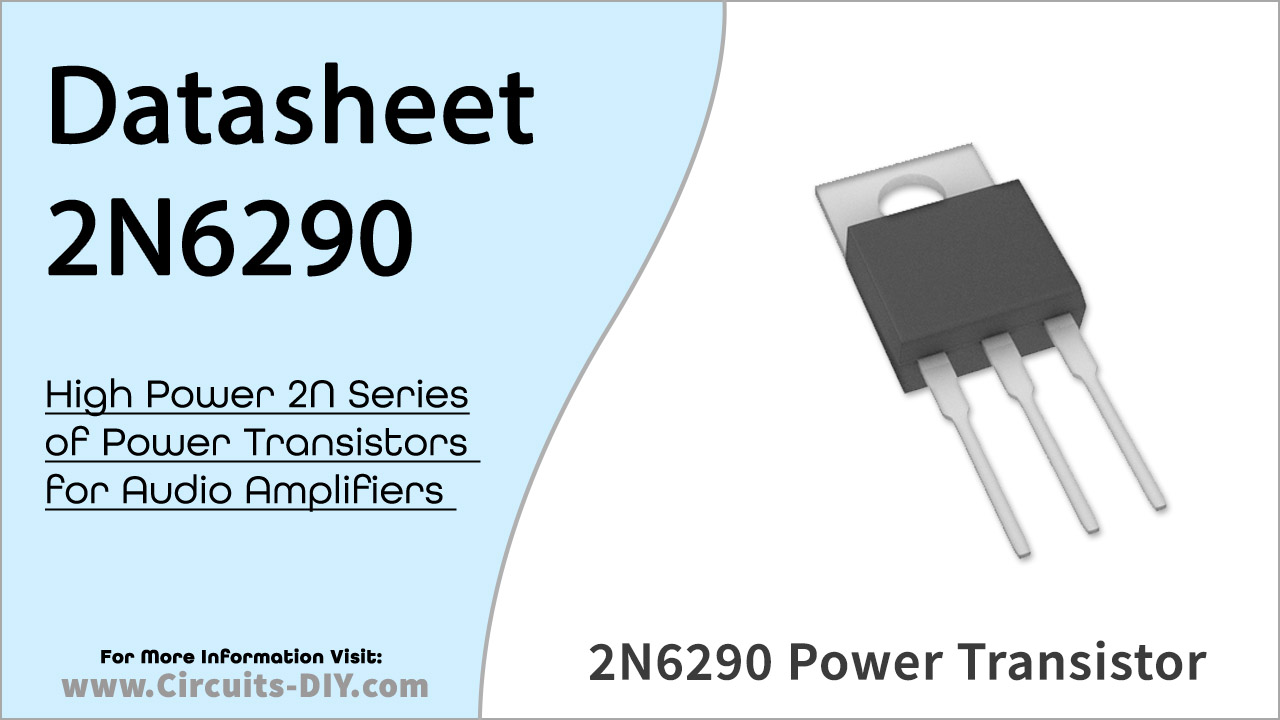

2N6290 is TO-220 package NPN Transistor used in power amplifier and switching circuits applications
What is Power Transistor?
Transistors are three-terminal semiconductor electronic devices that can be used as switches or amplifiers. They can be of NPN or PNP polarity, and many different types are available with different power and switching speed ratings. If a transistor designed to these concepts can handle more than 1 A of collector current, it is generally considered to be a power transistor. Such transistors must have low output resistance to deliver large load currents, and good junction insulation to resist high voltages. They must also dissipate heat very quickly to avoid overheating.
2N6290 Pinout
2N6290 Pin Configuration
Pin No | Pin Name |
---|---|
1 | Base |
2 | Collector |
3 | Emitter |
4 | Collector (Case) |
2N6290 Key Features
- DC Current Gain-
- : hFE = 30-150@ IC= 2.5A
- Collector-Emitter Sustaining Voltage-
- : VCEO(SUS)= 50V(Min)
- Minimum Lot-to-Lot variations for robust device performance and reliable operation
- Type Designator: 2N6290
- Material of Transistor: Si
- Polarity: NPN
- Package: TO220
Specification
Ic (mA) | Pd (mW) | Vce (max) | Vcb | hfe | @Ic | FT (MHz) |
---|---|---|---|---|---|---|
7 | 40 | 50 | 60 | 30-150 | 2500 | 2.5 |
2N6290 Equivalent/Alternate:
- 2N60, 2N600, 2N6000, 2N6001, 2N6002, 2N6109
Application
- General-Purpose Amplifier
- Switching Applications
You can download this datasheet for 2N6290 NPN Power Transistor from the link given below:
