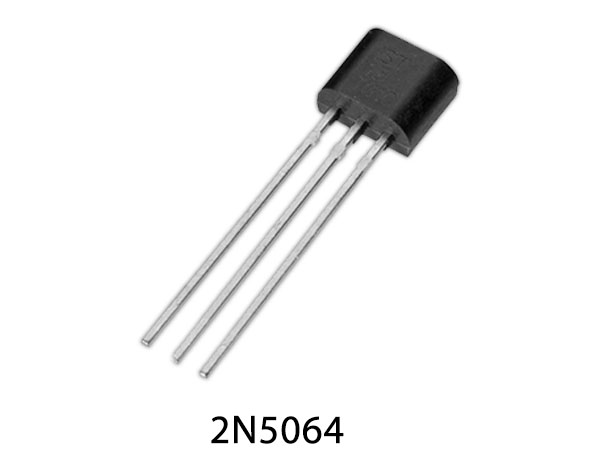

2N5064 0.8A 200V SCR PN device is designed for high volume consumer applications such as relay and lamp drivers, small motor controls, gate drivers for larger thyristors, and sensing and detection circuits. Supplied in an inexpensive plastic TO-226AA (TO-92) package which is readily adaptable for use in automatic insertion equipment.
2N5064 Pinout
2N5064 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Cathode |
| 2 | Gate |
| 3 | Anode |
2N5064 Key Features
- Sensitive Gate Trigger Current — 200 µA Maximum
- Low Reverse and Forward Blocking Current — 50 µA Maximum, TC = 110°C
- Low Holding Current — 5 mA Maximum
- Passivated Surface for Reliability and Uniformity
- Device Marking: Device Type, e.g., 2N5060, Date Code
2N5064 Specification
| Type | Vgt (V) | Vdrm (V) | It(A) | Igt (uA) |
|---|---|---|---|---|
| 2N5060 | 0.8 | 200 | 0.8 | 200 |
Application
- It is used for a wide range of switching applications
- Relay and lamp drivers
- Small motor controls
- Gate drivers for larger thyristors
- Sensing and detection circuits
You can download this datasheet for 2N5064 0.8A 200V SCR – Datasheet from the link given below:
