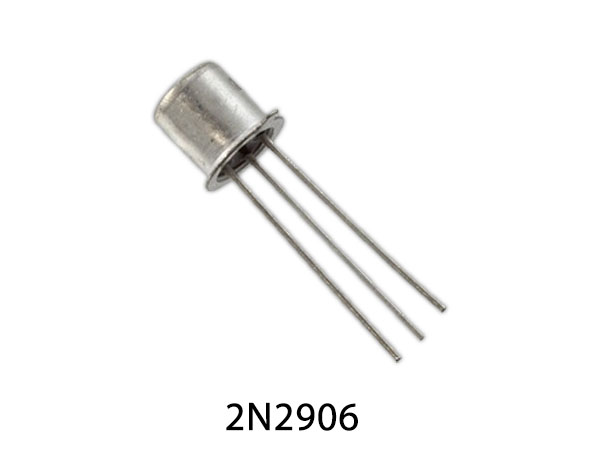

The 2N2906 is a silicon planar epitaxial PNP transistor in Jedec TO-18 (for 2N2907 metal cases. It is designed for high-speed saturated switching and general-purpose applications.

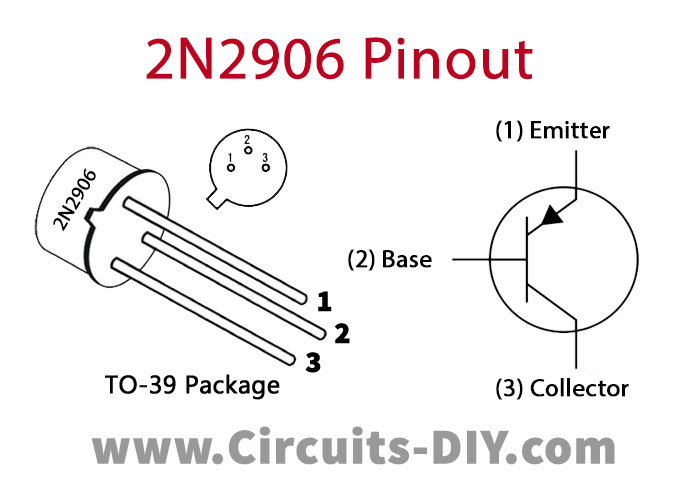

2N2906 Pinout
2N2906 Pin Configuration
| Pin No | Pin Name |
|---|---|
| 1 | Emitter |
| 2 | Base |
| 3 | Collector |
2N2906 Key Features
- High current (max. 600 mA)
- Low voltage (max. 60 V)
2N2906 Specification
| Name | Description |
|---|---|
| Collector-Emitter Voltage (Vce) | 40 V |
| Collector-Base Voltage (Vcb) | 60 V |
| Emitter-Base Voltage (Veb) | 5 V |
| Collector Current (Ic) | 0.6 A |
| Collector Power Dissipation (Pc) | 0.4 W |
| Transition Frequency | 200 MHz |
Application
- High-speed switching
- Driver applications for industrial service

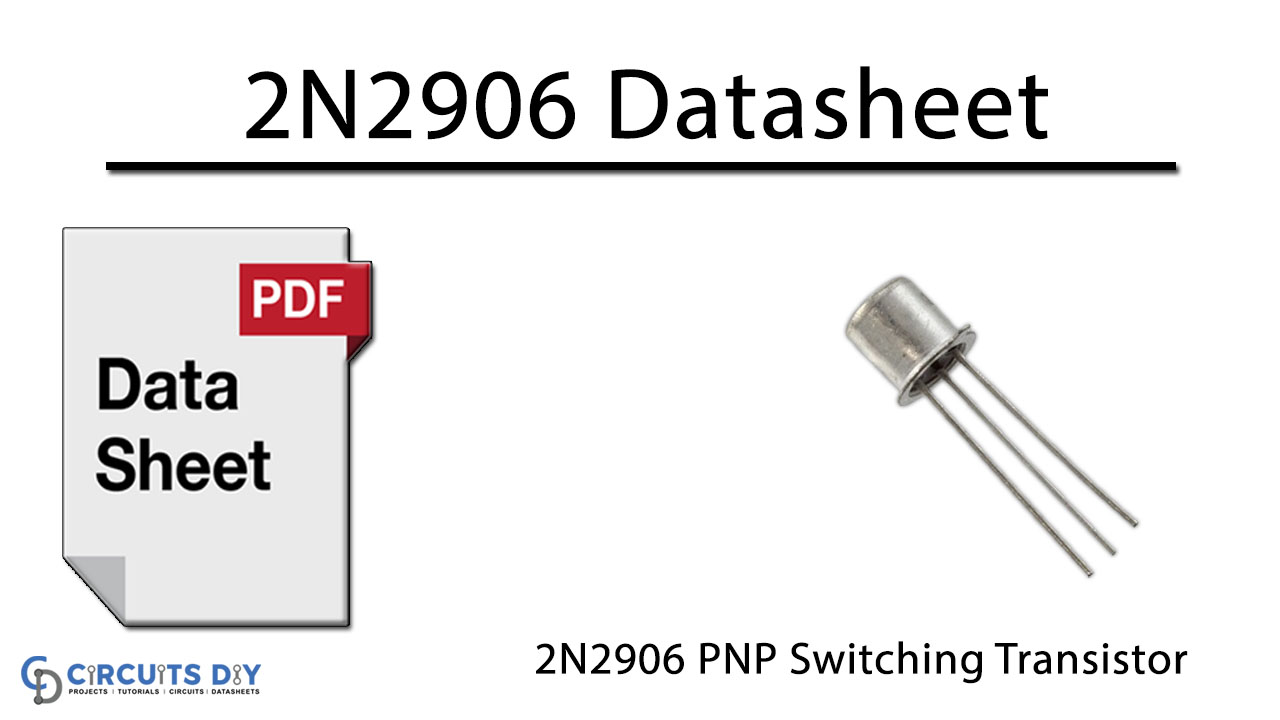

You can download this datasheet for 2N2906 PNP Switching Transistor – Datasheet from the link given below:
