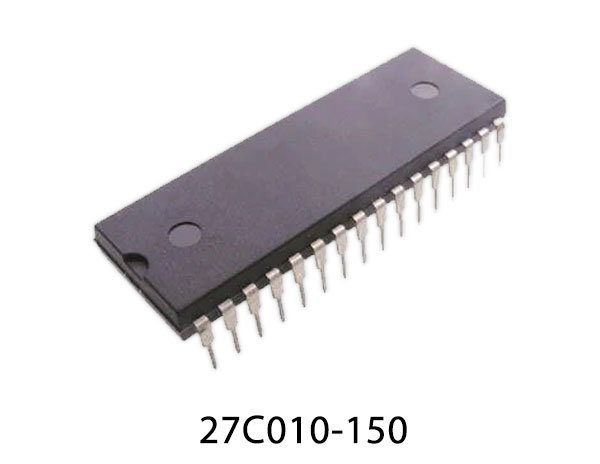

27C010-150 1024K 150ns CMOS EPROM

Contents hide

The AT27C010(L) is a low-power, high-performance 1,048,576-bit one-time programmable read-only memory (OTP EPROM) organized as 128K by 8 bits. They require only one 5V power supply in normal read mode operation. Any byte can be accessed in less than 45 ns, eliminating the need for speed-reducing WAIT states on high-performance microprocessor systems. Two power versions are offered. In read mode, the AT27C010 typically consumes 25 mA while the AT27C010L requires only 8 mA. The standby mode supply current for both parts is typically less than 10 µA.

Buy Now

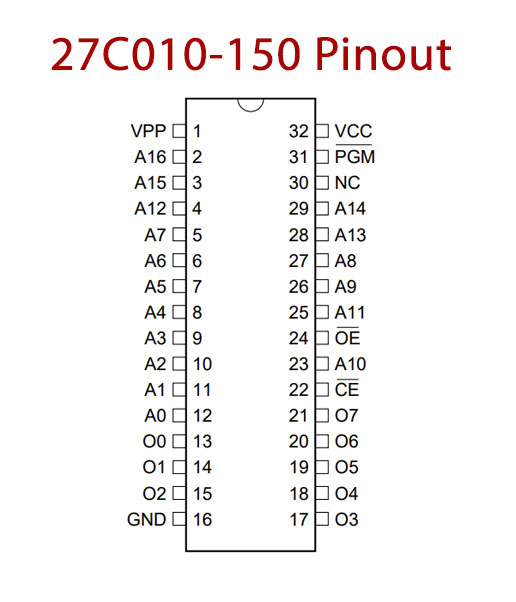

27C010 Pinout

27C010 Pin Configuration

Pin Number	Pin No	Description
1	VPP	Programming Pin
2	A16	Address Input
3	A15	Address Input
4	A12	Address Input
5	A7	Address Input
6	A6	Address Input
7	A5	Address Input
8	A4	Address Input
9	A3	Address Input
10	A2	Address Input
11	A1	Address Input
12	A0	Address Input
13	Q0	Data Output
14	Q1	Data Output
15	Q2	Data Output
16	GND	Ground
17	Q3	Data Output
18	Q4	Data Output
19	Q5	Data Output
20	Q6	Data Output
21	Q7	Data Output
22	CE’	Chip Enable
23	A10	Address Input
24	OE’	Output Enable/Program Supply
25	A11	Address Input
26	A9	Address Input
27	A8	Address Input
28	A13	Address Input
29	A14	Address Input
30	NC	No Connection
31	PGM	Programming Pin
32	VCC	Positive Power Supply

27C010 Key Features

JEDEC Standard Packages
- 32-Lead 600-mil PDIP
- 32-Lead PLCC
- 32-Lead TSOP
5V ± 10% Supply
High Reliability CMOS Technology
- 2000V ESD Protection
- 200 mA Latchup Immunity
Rapid Programming Algorithm – 100 µs/byte (typical)
CMOS and TTL Compatible Inputs and Outputs
Integrated Product Identification Code
Commercial, Industrial and Automotive Temperature Ranges
