The 23K640 is a 64 Kbit Serial SRAM device. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled through a Chip Select (CS) input. Communication to the device can be paused via the hold pin (HOLD). While the device is paused, transitions on its inputs will be ignored, with the exception of Chip Select, allowing the host to service higher priority interrupts. The 23X640 is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 8-lead TSSOP

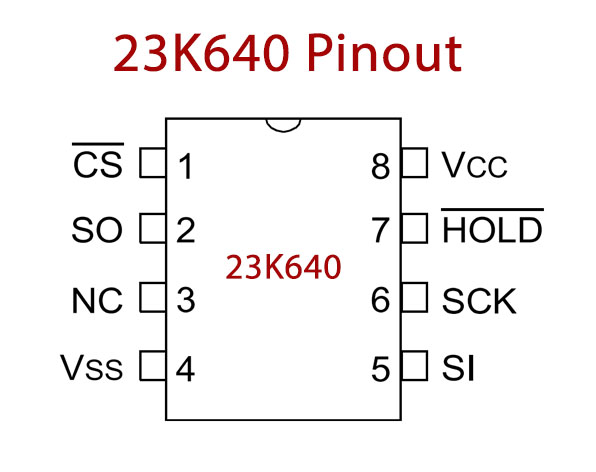

23K640 Pinout
23K640 Pin Configuration
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | CS’ | Chip Select Pin |
| 2 | SO | Serial Data Output |
| 3 | NC | No Connection |
| 4 | VSS | Ground Pin |
| 5 | SI | Serial Data Input |
| 6 | SCK | Serial Clock Input |
| 7 | HOLD’ | Hold Input |
| 8 | VCC | Supply Voltage |
23K640 Key Feature
- Max. Clock 20 MHz
- Low-Power CMOS Technology:
- Read Current: 3 mA at 1 MHz
- Standby Current: 4 μA Max. at +85°C
- 8192 x 8-bit Organization
- 32-Byte Page
- HOLD pin
- Flexible Operating modes:
- Byte read and write
- Page mode (32 Byte Page)
- Sequential mode
- Sequential Read/Write
- High Reliability
You can download this datasheet for 23K640 64k SPI Bus Serial SRAM – Datasheet from the link given below:
