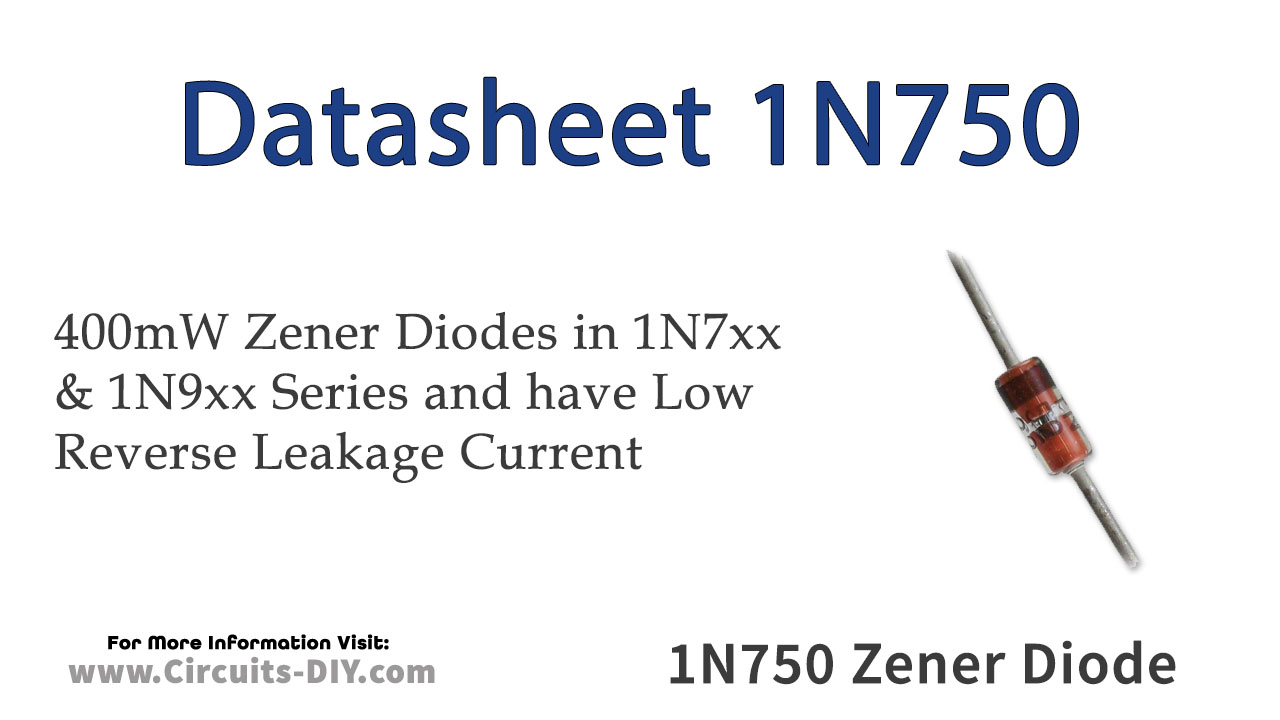

1N750 4.7V 400mW Zener Diode – Datasheet

4,717 views

1N750 is a 4.7 Volt 400mW Zener diode that acts as a two-way switch means that it can conduct current in forward as well as reverse direction. It is a heavily doped diode and permits the reverse current when a specific voltage level is reached.

1N750 Features & Specification

  • Nominal Zener Voltage (Vz): 4.7V
  • Maximum Regulator Current (Izm): 0.075A
  • Max. Reverse Leakage Current (Ir): 0.002mA
  • Forward Voltage Drop (Vf): 1.5V
  • Total Power Dissipation (Ptot): 400mW

Application

  • It is used for voltage regulation

You can download this datasheet for 1N750 4.7V 400mW Zener Diode from the link given below:
