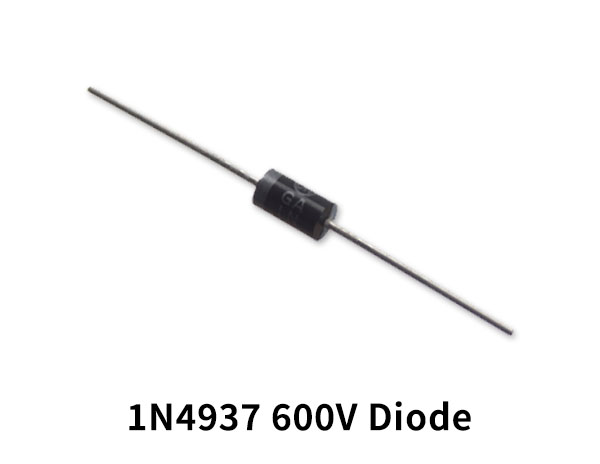

1N4937 600V 1A Fast Recovery Diode – Datasheet

1N4937 600V 1A Fast Recovery Diode is a Low Forward Voltage Drop, High Surge Current Capability, High Reliability and High Current Capability

1N4937 Features & Specification

• Peak Repeat. Reverse Voltage (Vrrm): 600V
• Peak RMS Reverse Voltage (Vr): 420V
• Average Forward Current (Io): 1.0A
• Max. Reverse Current (Ir): 0.005mA
• Max. Forward Voltage Drop (Vf): 1.1V
• Reverse Recovery Time (Trr): 200nS

Application

• Dc power supplies
• Inverters
• Converters
• Ultrasonic systems
• Choppers
• low RF interference
• Free wheeling diode

You can download this datasheet for 1N4937 600V 1A Fast Recovery Diode from the link given below:
